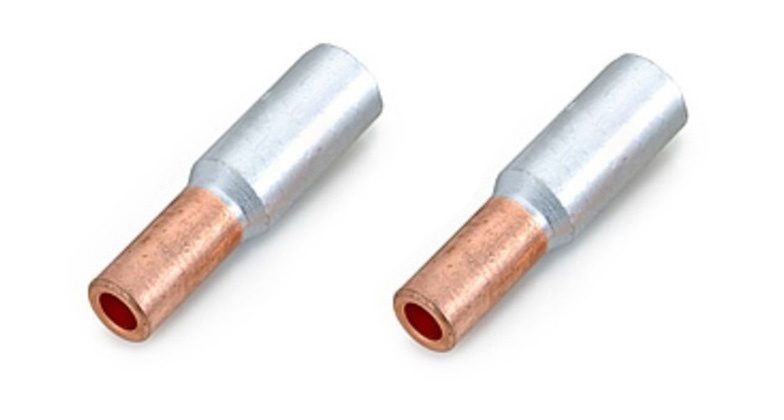

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Bimetallic Joints – Straight Type. we are engaged in offering a superior range of Bimetallic Joints – Straight Type. The joints are specially designed arrangement to limit temperature rise under through-fault condition.
Our highly skilled team uses excellent quality materials to manufacture these Bimetallic Joints – Straight Type in confirmation with industry standards. Before dispatch, the joints are sternly checked on varied parameters to ensure their best quality. These bimetallic joints straight type are light weight and which has low maintenance & it is rust proof.
Our high-quality Bimetallic Joints – Straight Type are well recognized by our worldwide customers. If you looking to buy these Bimetallic Joints – Straight Type Lugs. Contact us today with your requirement for the best prices.
| CABLE SIZE (AL) mm2 | CABLE SIZE (CU) mm2 | DIM IN mm (A) | DIM IN mm (B) | DIM IN mm (C) | DIM IN mm (D) | DIM IN mm (E) | DIM IN mm (F) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25 | 32 | 21.5 | 12 | 7 | 97 | 7 | 70 | 25 |
| 35 | 35 | 32 | 21.5 | 12 | 8.5 | 11.5 | 8.4 | 70 | 20 |
| 50 | 50 | 32 | 21.5 | 16 | 9.5 | 12.7 | 9.5 | 70 | 20 |
| 70 | 70 | 32 | 21.5 | 16 | 11 | 14.3 | 11.1 | 70 | 20 |
| 95 | 95 | 60 | 40 | 21.5 | 13 | 17.5 | 13.5 | 120 | 15 |
| 120 | 120 | 60 | 40 | 21.5 | 15 | 20.6 | 15.5 | 120 | 15 |
| 150 | 150 | 60 | 40 | 27 | 16.5 | 22.2 | 16.3 | 120 | 15 |
| 185 | 185 | 60 | 40 | 27 | 18.5 | 24.3 | 18.3 | 120 | 15 |
| 240 | 240 | 60 | 40 | 35 | 21 | 28.6 | 21.2 | 122 | 10 |
| 300 | 300 | 60 | 40 | 35 | 23.5 | 31.9 | 23.8 | 125 | 10 |
| 400 | 400 | 70 | 55 | 47 | 26.5 | 34.9 | 26.8 | 153 | 5 |
| 500 | 500 | 70 | 58 | 47 | 29.5 | 38 | 30 | 155 | 5 |
| 630 | 630 | 70 | 60 | 54 | 33.5 | 45 | 33.5 | 160 | 2 |
