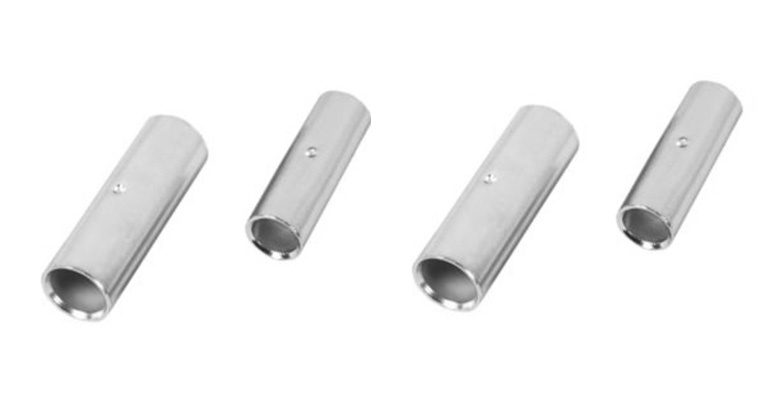

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Copper Compression Joints – Regular Barrel. Copper Connectors offers users connectors that are designed and manufactured for fast assembly and reliable performance. Copper Compression Joints – Regular Barrel are constructed from high-quality materials made with electrolytic copper for high conductivity and tin-plated for corrosion resistance.
With cable sizes ranging from 0.5 sq.mm to 1200 sq.mm, Copper Compression Joints – Regular Barrel are dependable with rapid connection methods for interconnecting heavy gauge power cables with increased efficiency, safety, and reduce costs. Copper Connectors are designed, manufactured, tested and comply with International Standards like BS, DIN, UL and IEC.
Our high-quality Copper Compression Joints – Regular Barrel are well recognized by our worldwide customers. If you looking to buy these Copper Compression Joints – Regular Barrel. Contact us today with your requirement for the best prices.
| CABLE mm2 | DIM IN mm (A) | DIM IN mm (C) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|
| 1.5 | 1.8 | 3.7 | 12 | 2000 |
| 2.5 | 2.4 | 4 | 15 | 2000 |
| 4 | 3.1 | 4.8 | 15 | 2000 |
| 6 | 3.8 | 5.5 | 15 | 1000 |
| 10 | 4.5 | 6.2 | 20 | 1000 |
| 16 | 5.4 | 7.1 | 20 | 500 |
| 20 | 6.1 | 7.7 | 22 | 500 |
| 25 | 6.8 | 8.8 | 32 | 300 |
| 35 | 8.2 | 10.6 | 36 | 200 |
| 50 | 9.5 | 12.4 | 40 | 150 |
| 70 | 11.1 | 14.3 | 45 | 100 |
| 95 | 13.5 | 17.4 | 45 | 75 |
| 120 | 15 | 19.4 | 45 | 50 |
| 150 | 16.5 | 21.2 | 55 | 40 |
| 185 | 18.5 | 23.5 | 60 | 30 |
| 240 | 21 | 26.5 | 80 | 20 |
| 300 | 23.5 | 30 | 85 | 15 |
| 400 | 27.5 | 35.5 | 85 | 10 |
| 500 | 30 | 39 | 100 | 5 |
| 630 | 34.5 | 44 | 110 | 5 |
| 800 | 39 | 50.6 | 150 | 1 |
| 1000 | 43 | 56.2 | 170 | 1 |
