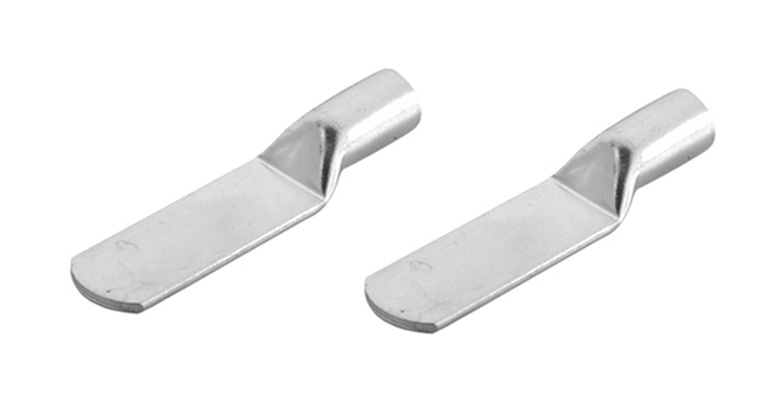

Copper Cable Lugs with Sealed Palm are manufactured and exported by Multimet Overseas to meet the needs of the majority of end users. Our Copper Compression Cable Lugs with Sealed Palm are also compliant with electrical specifications that are in line with industry standards. If applicable, Copper Cable Lugs with sealed palm can provide initial and final resistance, tensile pull off tests, and cycle periods.
Multimet Overseas supplies Copper Cable Lugs with sealed palm in a wide range of sizes and specifications at competitive prices across the globe. We deliver all our products on time and safely. For best prices of Copper Sealed Palm Compression Cable Lugs Contact us today and our sales representative will get back to you.
| CABLE mm2 | Ø E | DIM IN mm (A) | DIM IN mm (C) | DIM IN mm (D) | DIM IN mm (P) | DIM IN mm (B) | DIM IN mm (L) | PER BOX |
|---|---|---|---|---|---|---|---|---|
| 16 | 13 | 5.9 | 8 | 20 | 24 | 34 | 65 | 150 |
| BLANK | ||||||||
| 25 | 13 | 7 | 9.7 | 18 | 21 | 41 | 69 | 100 |
| BLANK | ||||||||
| 35 | 13 | 8.4 | 11.5 | 22 | 25 | 41 | 75 | 100 |
| BLANK | ||||||||
| 50 | 13 | 9.5 | 12.7 | 22 | 27 | 41 | 78 | 75 |
| BLANK | ||||||||
| 70 | 13 | 11.1 | 14.3 | 21 | 25 | 47 | 80 | 75 |
| BLANK | 28 | 45 | 101 | |||||
| 95 | 13 | 13.5 | 17.5 | 26 | 31 | 47 | 89 | 50 |
| BLANK | ||||||||
| 120 | 13 | 15.5 | 20.6 | 29 | 33 | 62 | 104 | 30 |
| BLANK | ||||||||
| 150 | 13 | 16.3 | 22.2 | 33 | 32 | 62 | 112 | 25 |
| 17 | 38 | 118 | ||||||
| BLANK | ||||||||
| 185 | 13 | 18.3 | 24.3 | 35 | 32 | 62 | 112 | 20 |
| 17 | 35 | 118 | ||||||
| BLANK | ||||||||
| 240 | 13 | 21.2 | 28.6 | 40 | 42 | 77 | 144 | 10 |
| 17 | ||||||||
| BLANK | ||||||||
| 300 | 17 | 23.8 | 31.9 | 45 | 50 | 88 | 163 | 5 |
| 21 | ||||||||
| BLANK | ||||||||
| 400 | 17 | 27.5 | 35.5 | 49 | 50 | 88 | 163 | 3 |
| 21 | ||||||||
| BLANK | ||||||||
| 500 | 17 | 30 | 38 | 55 | 50 | 88 | 167 | 1 |
| 21 | ||||||||
| BLANK | ||||||||
| 630 | 17 | 34.5 | 44 | 63 | 55 | 100 | 192 | 1 |
| 21 | ||||||||
| BLANK |
Multimet offers Copper Sealed Palm Compression Cable Lugsr at competitive prices. You can request the latest prices of Sealed Palm Compression Cable Lugs by sending us an email at sales@multimetcopper.com. We can assure you of one of the best prices for all types of Copper Sealed Palm Compression Cable Lugs.
We maintain a huge stock of Copper Sealed Palm Compression Cable Lugs in different sizes, materials and specifications to fulfill the urgent demands of our customers worlwide.
Copper Sealed Palm Compression Cable Lugs are mainly used for ccable. Copper conductors are terminated to equipment and switch gear panels using this connector. For use with conventional hexagon dies for crimping (Also used for standard range of copper lugs). Designed to be used as an outdoor termination. When a precise connection at the cable’s end is required. For a secure termination, it’s designed to accept two bolt mounting.
