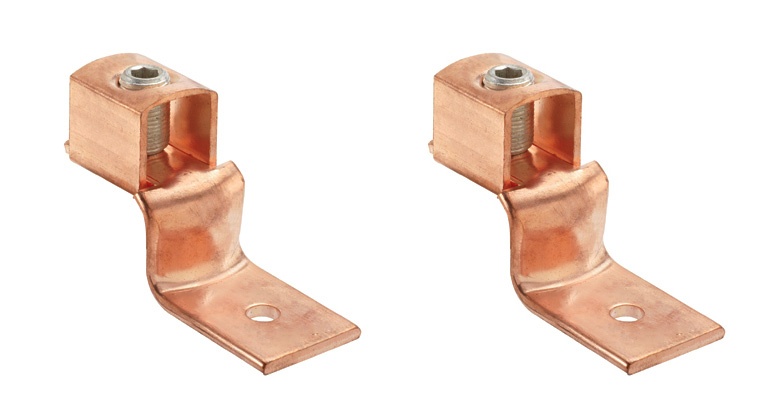

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Copper Offset Tongue – 1 Hole Copper Mechanical Lugs in India. Copper Cable Lugs are manufactured from superior quality raw materials made with electrolytic copper for high conductivity and tin-plated for corrosion resistance. Copper Compression Lugs are designed for fast assembly and best performance.
Copper Compression Cable Lugs are available in a wide range of sizes ranging from 0.5 Sq.mm to 1200 Sq.mm with different stud hole. Multimet Overseas Copper Lugs are manufactured according to national and international standards like BS, DIN, UL, CUL and IEC. These Offset Tongue – 1 Hole Copper Mechanical Lugs are provided with inspection window, thus ensuring full conductor insertion.
Our Offset Tongue – 1 Hole Copper Mechanical Lugs can be easily instal and have excellent electrical and mechanical properties, high wall thickness and are readily available as we are huge stockist of copper cable lugs.
Our high-quality Offset Tongue – 1 Hole Copper Mechanical Lugs are well recognized by our worldwide customers. If you looking to buy these Offset Tongue – 1 Hole Copper Mechanical Lugs. Contact us today with your requirement for the best prices.
|Wide Range||Dim in Inch / Width (W)||Dim in Inch / Total Length (L)||Screw Type||Per Box|
|10 – 14 AWG||0.313||1.000||SLOTTED||75|
|6 – 14 AWG||0.375||1.189||SLOTTED||50|
|2 – 8 AWG||0.500||1.531||SLOTTED||50|
|1/0 – 6 AWG||0.625||1.969||SLOTTED||40|
|3/0 – 4 AWG||0.750||2.189||SOCKET||30|
|4/0 – 2 AWG||1.000||2.626||SOCKET||20|
|350 KCMIL – 1/0 AWG||1.000||3.189||SOCKET||10|
|500 KCMIL – 1/0 AWG||1.500||4.252||SOCKET||5|
|1000 KCMIL – 500 KCMIL||2.000||4.626||SOCKET||3|
