Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Dead End Strain Clamp. This invention is a combined Dead End Strain Clamp for high tension electrical conductors. One of the objects of the invention is to provide a clamp device so constructed and arranged that one type of clamp is selectively adapted for use at dead ends, corners, suspension, or pull off points.
We Manufactures highly strict quality controls are implemented on every step to ensure the product quality delivering to the market. We make available these Dead End Strain Clamp in both standard and customized options as to meet light, medium and heavy-duty industrial applications.
Our high-quality Dead End Strain Clamp are well recognized by our worldwide customers. If you looking to buy these Dead End Strain Clamp. Contact us today with your requirement for the best prices.

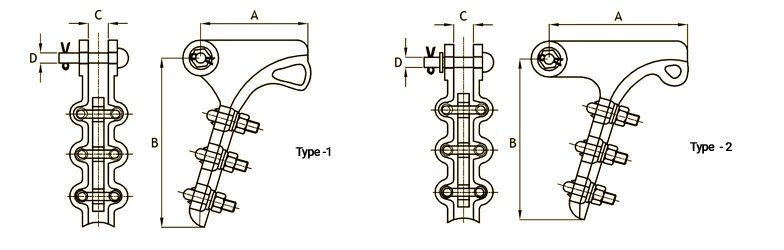

|TYPE||COND. RANGE / DIA. ( MM )||A ( MM )||B ( MM )||C ( MM )||D ( MM )||No. of U Bolts||U.T.S ( Kg )|
|1||5.1 – 14.4||110||135||25||M16||2||4,500|
|2||7.6 – 15.2||203||181||17||M16||3||7,000|
|1||7.6 – 17.5||118||210||19||M16||3||7,000|
|1||14.2 – 22.0||170||330||25||M16||4||9,000|
|2||14.2 – 22.0||290||310||25||M16||4||9,000|
|1||14.2 – 22.0||170||460||25||M16||6||12,000|
|1||22.0 – 33.0||170||330||35||M16||4||9,000|
