Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Straight Type Clamp. This invention is a combined Straight Type Clamp for high tension electrical conductors. One of the objects of the invention is to provide a clamp device so constructed and arranged that one type of clamp is selectively adapted for use at dead ends, corners, suspension, or pull off points.
We Manufactures highly strict quality controls are implemented on every step to ensure the product quality delivering to the market. We make available these Straight Type Clamp in both standard and customized options as to meet light, medium and heavy-duty industrial applications.
Our high-quality Straight Type Clamp are well recognized by our worldwide customers. If you looking to buy these Straight Type Clamp. Contact us today with your requirement for the best prices.

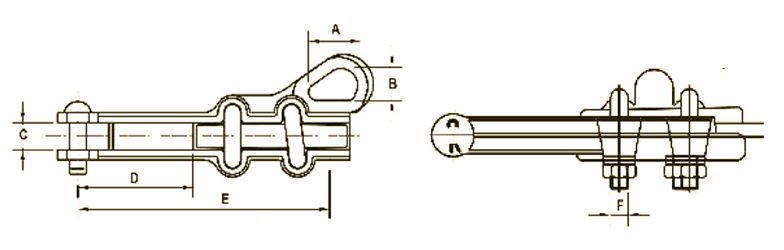

| Type | COND. RANGE / DIA. ( MM ) | A ( MM ) | B ( MM ) | C ( MM ) | D ( MM ) | E ( MM ) | F ( MM ) | U.T.S ( Kg ) |
|---|---|---|---|---|---|---|---|---|
| 1 | 8 – 16 | 41 | 28.5 | 19 | M16 | 210 | 12.7 | 4,500 |
| 2 | 10 – 20 | 41 | 28.5 | 24 | M16 | 266 | 12.7 | 7,000 |
