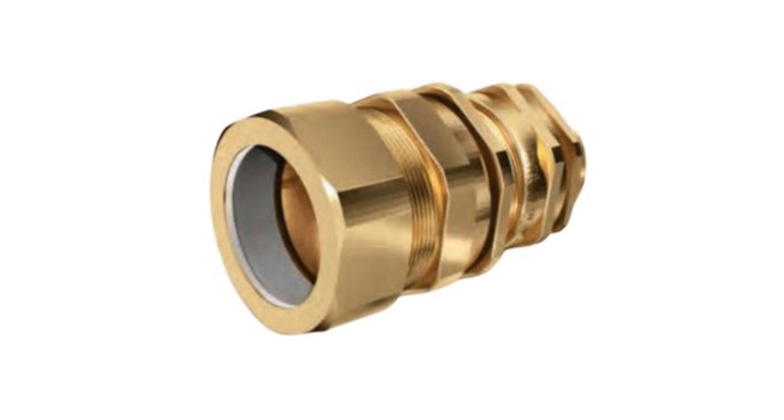

Multimetal Overseas is the most trusted and leading manufacturer, supplier and exporter of E1Z Industrial Cable Gland. Customers can buy these E1Z Industrial Cable Gland in a wide range of specifications like thickness, size, length, width, etc. at best price.
E1Z Industrial Cable Gland are constructed from high-quality materials made with copper alloy for high strength and nickel-plated for corrosion resistance. With gland sizes ranging from metric threads M16 to M100 and inch threads 1/2″ to 3″, E1Z Industrial Cable Gland are dependable with rapid installation methods for passing power cables to panels for Industrial applications, the Oil & Gas Industry and more, with increased efficiency, safety, and reduced costs.
Brass indoor and outdoor cable glands highly suitable for single wire armoured, plastic or rubber sheathed cables. Provides grip to the cable with outer and inner seals. Used popularly in most climatic conditions weatherproof and waterproof.
Our high-quality E1Z Industrial Cable Gland are well recognized by our worldwide customers. Contact us today with your requirement for best prices.
| Type | CZ |
| Design Specification | BS 6121 : Part 1 : 1989 |
| Ingress protection | IP 66 |
| Gland Material | Brass |
| Finish | Plain Brass or Nickel Plated |
| Seal Material | Thermoplastic Elastomer |
| Cable Type | Steel Tape Armour |
| Armour Clamping | Three Part (With Lock Nut) |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
| Gland Size | Cable Dim Acco / Under Armour Dia Max | Cable Dim Acco / Overall Dia Max | Cable Dim Acco / Steel Tape Thickness | Gland Dim / Dia ‘A’ | Gland Dim / Dia ‘B’ | Gland Dim / Metric Enry Thread ‘C’ | Gland Dim / Minimum Thread Length ‘D’ | Gland Dim / Across Flat ‘E’ Max | |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 6.0 | 13.2 | 0.15/0.35 | 9.5 | 16.9 | 16 | 10 | 24.20 | |
| 20S | 11.6 | 15.8 | 0.15/0.35 | 12.3 | 17.0 | 20 | 10 | 24.00 | |
| 20L | 13.9 | 19.5 | 0.15/0.5 | 14.3 | 20.3 | 20 | 10 | 27.17 | |
| 25S | 15.5 | 25.8 | 0.15/0.5 | 18.3 | 26.4 | 25 | 10 | 32.75 | |
| 25L | 19.9 | 26.0 | 0.15/0.5 | 20.8 | 26.9 | 25 | 10 | 34.30 | |
| 32 | 25.2 | 33.5 | 0.15/0.55 | 26.9 | 34.1 | 32 | 10 | 42.90 | |
| 40S | 29.4 | 38.5 | 0.2/0.6 | 31.5 | 39.6 | 40 | 15 | 49.30 | |
| 40L | 32.1 | 39.9 | 0.2/0.6 | 32.5 | 41.8 | 40 | 15 | 50.80 | |
| 50S | 39.5 | 49.0 | 0.5/0.8 | 40.9 | 50.2 | 50 | 15 | 61.70 | |
| 50L | 43.2 | 51.0 | 0.5/0.8 | 44.4 | 52.8 | 50 | 15 | 63.75 | |
| 63S | 50.6 | 58.9 | 0.5/0.8 | 51.8 | 61.9 | 63 | 15 | 73.90 | |
| 63L | 55.9 | 65.3 | 0.5/0.8 | 56.4 | 66.5 | 63 | 15 | 78.50 | |
| 75S | 61.9 | 71.6 | 0.5/1.0 | 63.2 | 74.2 | 75 | 20 | 87.40 | |
| 75L | 67.9 | 78.0 | 0.5/1.0 | 68.6 | 78.5 | 75 | 20 | 96.00 | |
| 90 | 74.0 | 88.0 | 0.5/1.0 | 79.0 | 90.2 | 85 | 20 | 105.30 | |
| Dimensions in Millimeters | |||||||||
