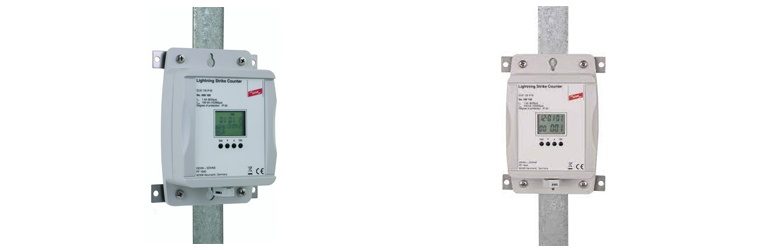

Multimet Overseas is the most trusted and leading manufacturer, supplier and exporter of Lightning Event Counter. The Lightning Counter is a device used to register the lightning impulse to identify how many strikes have taken place. It helps building managers, equipment maintenance companies and others keep a track of when the Lightning Protection system needs to be replaced including the Lightning Arrester, Down Conductors, etc.
In a Lightning Protection System, the down conductor connects the Air Terminal to the Earthing system in the ground. The lightning event counter is installed onto this down conductor to count the number of lightning strikes. When a lightning strike occurs and hits the Air Terminal, it will pass through the down conductor and down into the ground. The counter is connected in series with this down conductor to sense the lightning strike and the number of lightning strikes can be seen on the LCD display
Our high-quality Lightning Event Counter are well recognized by our worldwide customers. If you looking to buy these Lightning Event Counter. Contact us today with your requirement for the best prices.
|Minimum threshold current rating||1 kA|
|Maximum current rating||100 kA|
|Impulse Waveform||8/20 μs|
|Counting range||Up to 5 digit|
|Dimension||Length: 80 mm; Width: 80 mm; Height: 50 mm|
|Degree of protection||IP 65|
|Power Source||Battery (Replaceable)|
|Battery type||Lithium-ion battery|
